 Airman SIlent Generators














Engine Generator


Total 20 Models Covering 10KVA To 800KVA Including Several Ultra Silenced Models Certified By Minister Of Construction , Japan Line Up .The Alternator as a heart of human Body ensure smooth electricity generation Performance and it Shows So high Performance that Voltage Change is Limited within 1.5% due to load change.

Model RATED OUTPUT (KVA) RATED OUTPUT    (KW)

Number

 Of Cylinder

Diesel Engine

Fuel tank

capacity (L)

Sound Power

Level(dB)

Sound Pressure

Level db(A)

SDG 13S-3B1

10.5 11.5 3 Kubota D1503-K3A 58 85 65

SDG25S-3A7

20.0 19.1 4

ISUZU AA-4LE1

65 90 60

SDG45S-3A6

37.0 34.5 4

NISSAN 2A-BD30T

100 87 57

SDG60S-3A6

50.0 48.1 4

ISUZU BB-4BG1T

135 90 59

SDG100S-3A5

80.0 73.6 6

ISUZU DD-6BG1T

225 91 61

SDG125S-3A6

100.0 96.3 6

HINO JO8C-UP

250 92 63

SDG150S-3A6

125.0 118.0 6

HINO JO8C-UD

250 94 63
Silent Series

SDG220S-3A1

195.0 181.0 6

MITSUBISHI 6D24-TLE2B

370 95 67

SDG300S-3A1

270.0 242.0 6

HINO K13C-TY

490 99 69

SDG400S-3A1

350.0 309.0 6

MITSUBISHI S6B3-E2PTAA

490 101 71

SDG500S-3A1

450.0 405.0 6

MITSUBISHI S6A3-E2PTAA-1

490 98 68

SDG610S-3A1

554.0 517.0 6

MITSUBISHI S6R-PTA

580 101 72

SDG800S-3A1

700.0 676.0 12

MITSUBISHI S12A2-PTA

730 101 73
Ultra Super Silent Series

SDG25AS-3A6

20.0 19.1 4

ISUZU AA-4LE1

75 80 50

SDG45AS-3A6

37.0 34.5 4

NISSAN 2A-BD30T

162 81 51

SDG60AS-3A6

50.0 48.1 4

ISUZU BB-4BG1T

170 83 55

SDG100AS-3A6

80.0 73.6 6

ISUZU DD-6BG1T

225 84 54

SDG150AS-3A6

125.0 120 6

HINO JO8C-UD

265 87 55




- Indicated Sound Pressure Level is for 7m in four directions from machine and at no load



- All above values are for Frequency 50 Hz

- For other voltages than above-mentioned ones, contact us

- For models SDG500S, SDG610S and SDG800S rain protection hood can be installed.

- Exciting Method Brushless (With A.V.R.)

- No.Of Phase  3-Phase , 4-Wire.

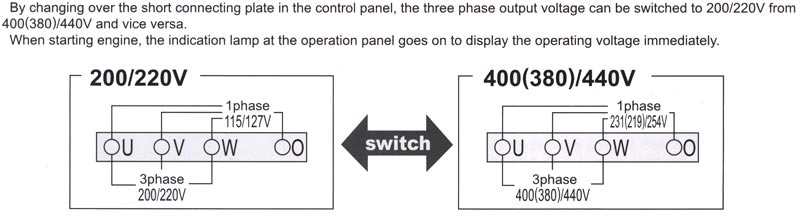

- Voltage Dual Voltage 220/380

- For other Voltage than above -mentioned ones , Contact Us.

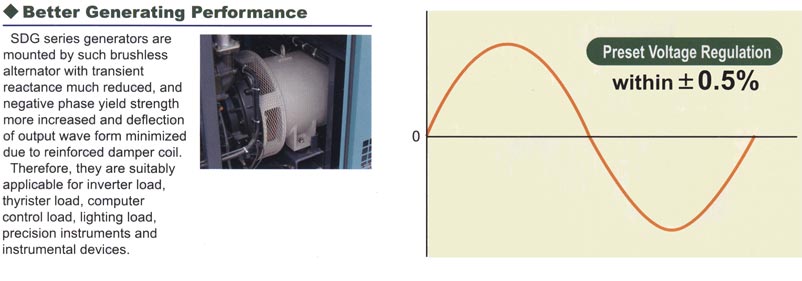

High Generating Performance

Dual Voltage Models ( SDG45S- 800S & 45AS-150AS)
